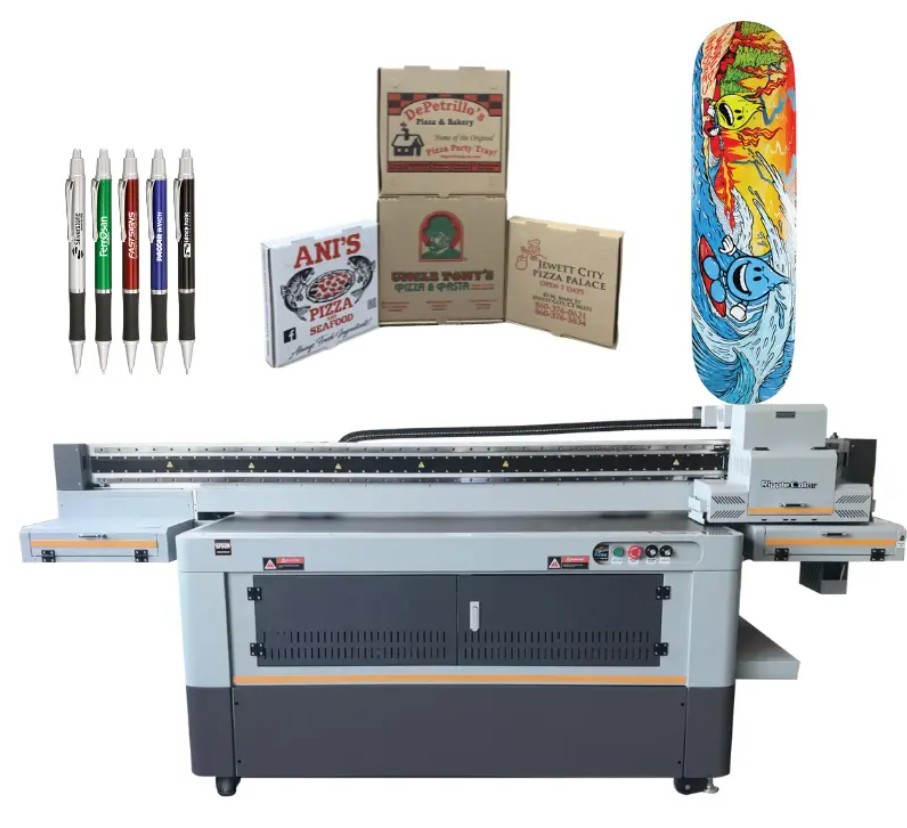

RC-1610 UV printer is an A0-size industrial UV printer with outstanding production amount and speed. It has a 160*100cm(62.9*39.3 inches) max printing size and a 25cm(9.84 inches) max printing height. RC-1610 UV printer supports a large bulk of all flatbed items and cylinders with a rotary device. It can also print materials in large format directly. Embossed and varnish effects are easy to reach.
- Printing Size: 160*100cm(62.9*39.3 inches)
- Printing height: 25cm(9.84 inches)
- Print Head Amount: 2-4 pcs
- Optional Print Head: XP600/DX8/I1600/I3200/G5/G5I
- Inks: CMYKW+V, anti-water, anti-scratch, anti-dust
- Optional Configuration: varnish/ LCLM/CCD visual positioning system
- Medias: glass, plastic, acrylic, metal, ball, tumbler, etc...
| Model Name | A0 RC-1610UV Flatbed Printer | Ink Cartridge Type | Ink Deficiency Alarm |
| Max Printing Size | 160*100cm(62.9*39.3 inches) | Vacuum Table | Yes(Free) |
| Print Head | XP600/TX800/I1600/I3200/G5/G5I | Operating System | Win7/Win10/Win11 |
| Print Head Quantity | 2-4 pcs | Rated Power | 1000W |
| Ink Color | CMYK/CMYKLCLM | Working Temperature | 20-30℃ |
| Max Printing Height | 0-25cm(9.84 inches) | Print Head Clean | Automatic |
| Software | Maintop/Riprint/Photoprint | Ink Type | UV curing ink |
| Print Interface | Gigabit Network | Machine Size | 280*166*138cm 690kg |
| Rotary Device and Varnish | Optional | Package Size | 288*114*177cm 790kg |
| White Stirring | Yes |
